HKS F-CON iS

HKS F-CON iS ECU The iS series is HKS's correction / trim only ECU.

It features:
• 4 24x16 INJECTION trim maps (8x in total, for AFM or MAP), for different fuel octane ratings.
• 4 24x16 IGNITION trim maps (8x in total, for AFM or MAP), for different fuel octane ratings.
• 24x16 INJECTION and IGNITION trim maps, for scramble mode.
• 12x8 INJECTION and IGNITION correction map based on throttle change and RPM.
• 24x16 INJECTION correction map, applied by AFR-target map.
• 24x16 AFR target map for wideband-controller feedback correction, applied to the 24x16 fuel trim map.

It also features 2 optional voltage outputs suitable for:
• Airflow.

Injection (fuel) and ignition (spark) trim and correction can be individually enabled and disabled by:
• VPC
• Throttle change correction map
• Scramble map
• GCC (graphical control computer)
• IAT correction map
• ECT correction map
• Fuel trim map A
• Fuel trim map B

The iS series also features a cool feature that does not require having the optional Navigator unit. Basically there is S-Video output to display specs and numbers to a mini-TV, a popular item in Japan and slowly becoming popular in Australia and elsewhere around the world.

Universal - Type-IG: What is this?

This is a special variant of the iS ECU where it supports inputting of already amplified ignition signal from OEM ECU, which contains integrated ignitor. Even though OEM ECU has integrated ignitor, HKS iS ECU requires additional, separate, and external ignitor in order to control ignition in this setup. Also, in majority of cases, the universal harness must be used and patched onto existing OEM harness.

NOTE: Connecting non-IG type iS onto engine with integrated ignitor, or vice versa, will DAMAGE electronic equipment.

Example of applications:
• BMW mini Cooper S
• Suzuki Swift
• Mazda Atenza

Hardware / Software differences between F-CON iS and F-CON SZ

HKS F-CON iS ECU - Video Output • New function: Immobilizer Function Channel parameter in Basic Tab of Parameter.
• New items in Monitor window.
• Map and parameters have been added for Close-Loop Cancellation Trim Map.
Navigator interface has been removed as F-CON iS will NOT work with F-CON Navigator.
Maximum Logging Time has been increased.
• Map and parameters have been added for Injector Dead Time IN/OUT.
• Parameters have been added for VIDEO Output Function.
• Parameters have been added for GCC Input Items.
• Parameters of Option Voltage have been added for A/F Adaptor Output.
• Parameters of Scramble Trim have been added for Trim C.
• Parameters have been added for AIC Fuel Cut.
• Parameters have been added for OBD-II Communication Function.
6 (Maximum) has been added to Map View.

Switch Location

HKS F-CON iS: Switch Location

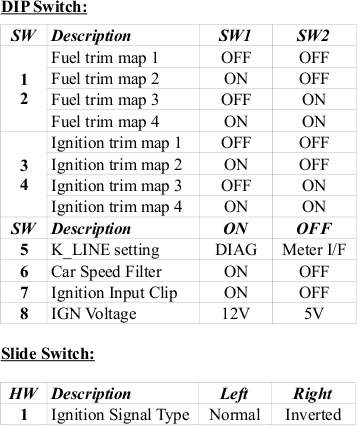

HKS F-CON iS: DIP Switches Setting

Pinout diagram

HKS F-CON iS ECU (piggyback) pinout diagram
HKS F-CON iS ECU (piggyback) pinout diagram ( PDF )

INJECTION and IGNITION Trim Diagram

HKS F-CON iS: Fuel / Injection Trim diagram          HKS F-CON iS: Ignition Trim diagram

AIC Management Diagram

HKS F-CON iS: AIC Injection diagram
