HKS F-CON V Pro SILVER The F-CON V Pro Silver series of HKS ECUs is the predecessor to the GOLD model.

It features:
• 24x16 INJECTION full-control map.
• 24x16 IGNITION full-control map, for both main and sub ignition.
• 24x16 INJECTION trim map.
• 24x16 INJECTION correction map based on throttle and RPM.
• 24x8 INJECTION correction map based on individual cylinder and RPM.
• 24x8 INJECTION correction map based on throttle change and RPM.
• 24x16 AFR target map for self-correction, applied to the 24x16 fuel trim map.
• 24x16 IGNITION correction map.
• 24x8 IGNITION correction map based on individual cylinder and RPM.
• 24x8 IGNITION correction map based on throttle change and RPM.

It also features 2 optional voltage outputs and 1 optional frequency output, suitable for:
• Airflow-based trigger or output.
• Pressure-based trigger or output.
• Throttle-based trigger or output.

Hardware version v2.0 appears to be engine-specific, whereas v2.1 can be utilised on different engines.

Hardware settings: CPU board

HKS F-CON V Silver - CPU board Configuration NOTE: CPU.DIPSW2: 1-8: ON


Hardware: v2.0

I/O board: v2.0: Diagram

HKS F-CON V Silver v2.0 - PCB Diagram

I/O board: v2.0: DIP Switches

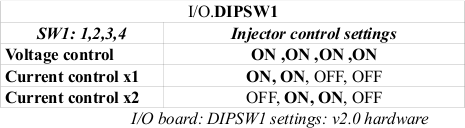

HKS F-CON V Silver v2.0 - I/O board Configuration DIP switches NOTE: DIPSW2 settings unknown

I/O board: v2.0: Jumpers

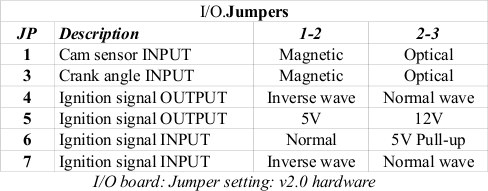

HKS F-CON V Silver v2.0 - I/O board Configuration Jumpers

Hardware: v2.1

I/O board: v2.1: Diagram

HKS F-CON V Silver v2.1 - PCB Diagram

I/O board: v2.1: DIP Switches

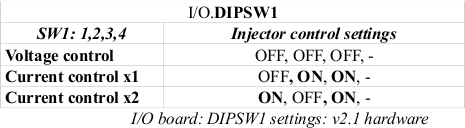

HKS F-CON V Silver v2.1 - I/O board Configuration DIP switches

I/O board: v2.1: Jumpers

HKS F-CON V Silver v2.1 - I/O board Configuration Jumpers

Hardware information: v2.0

PCB CPU: 230-80740

MCU

Designed by HKS
D65664GD-083-5BB
9642WX001

Photos: v2.0

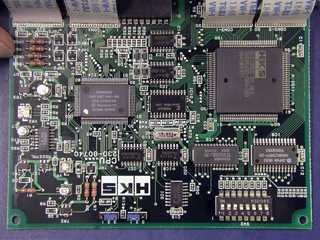

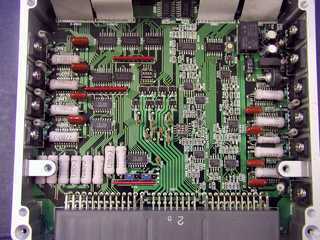

HKS F-CON V Silver v2.0 PCB IO HKS F-CON V Silver v2.0 PCB CPU

Thanks to Kuro from Japan for the high quality photos!
